ISO 13485:2016 checklist

Checklist for implementing a QMS for ISO 13485-2016

Classification of the medical device

As a start, review the characteristics of your device and determine its classification. Determine if it is a class I, II or III device according to the risk associated with the product. Based on this start point, proceed to overview and familiarize yourself with the relevant statutory and regulatory requirements related to the product as well as to determine the product status: is it a continuation of an existed version of the product or are you starting from scratch. Document the decisions related to the device development.

Low, Medium and High Risk

Select an appropriate QMS manager

In most of the cases the QMS manager has been selected from the existing team members, and the assigned employee is generally working in another position as well. The point is that they must be properly trained in order to provide QMS oversight in an appropriate manner. The QMS manager can be be self-trained or a certified QMS manager. Companies sometimes involve third-party Consulting organizations. Either way, an assigned internal employee would still be prudent, if not necessary.

Performing a GAP analysis for QMS

The purpose of the GAP analysis is to show the difference between what you are currently doing and what the Standard is expecting. The GAP will reveal the “holes” that need to be plugged and determine what processes you are using and which you are not using – based on what is appropriate for your product’s characteristics, the structure and size of the company and its main activities. The GAP analysis additionally serves as a template to help implement the QMS system in the company in a logical and structured manner.

Prepare Quality policy

The Quality policy is a statement that includes the company’s primary goals and the strategy to achieve them. The Quality policy should be promoted throughout the company. All the employees should be aware of the Quality policy and are required to work according to this policy.

Prepare Quality Policy

Determine the Quality objectives

The Quality policy sets the route to Quality objectives that are more concrete goals related to certain processes. Physically The Quality objectives can be presented in the Quality manual or described in a separate document. All the employees should be aware of the Company’s Quality objectives.

Organizational structure

Establish the draft of the company's structure, in a so called Organizational chart, that should look like a diagram including all the positions foreseen for the company or for a certain project inside the company depending whether the QMS system is related to a certain product or a product group. The Organizational chart should include the positions (with or without concrete names or avatars) and the relationships (hierarchy) between those positions.

Establish the Quality plan

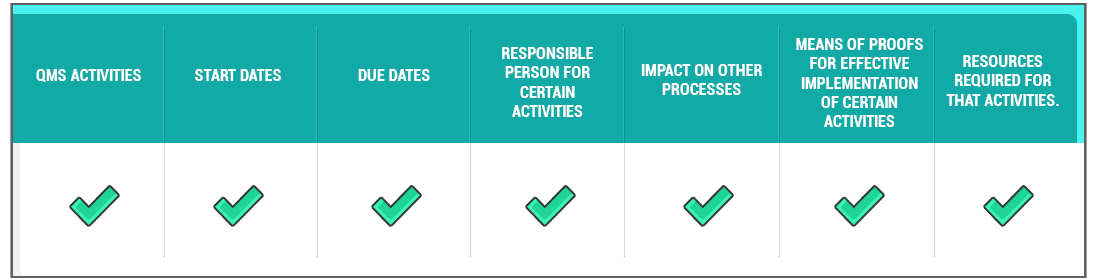

The Quality plan is a common table or sheet that should include the following:

QMS Activities, Start Dates, Due Dates, Responsible person for certain activities, Impact on other processes, Means of proofs for effective implementation of certain activities, resources required for that activities

The Quality plan should be updated regularly as the project proceeds or changes. The following typical activities might be included:

  • Implementing CAPA,
  • Selection of a certification body, etc.
  • Internal audits
  • Management Reviews

Establish the Quality manual

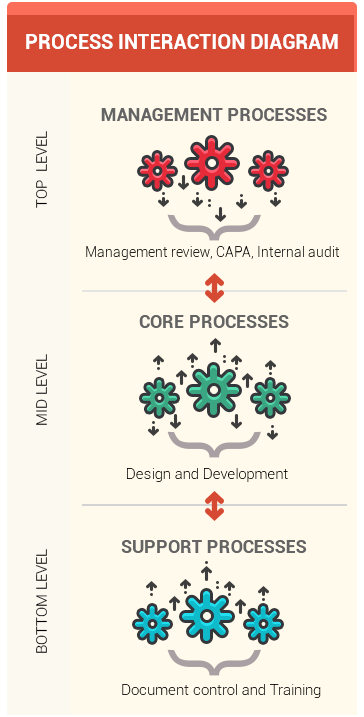

Process Interaction Diagram: Top Level - Management Processes, Mid Level - Core Processes, Bottom Level - Support Porcesses

This document should include the following:

  • Process interaction diagram

    • Generaly consists of 3 levels:
    • 1. Bottom level contains support processes such as Document control and Training
    • 2. Middle level contains core processes such as Design and development, Purchasing and Manufacturing
    • 3. Top level contains the Management processes such as Management review, Internal audit and CAPA
  • Statements of the applicable processes and their implementation, list of excluded processes and the reason of exclusion
  • Organizational chart
  • Quality objectives
  • Quality policy
  • References to relevant documents such as Work instructions
  • Process descriptions and forms

Get Started for Free
Instant Sign Up. No Credit Card Required.

Establish processes for Document and Record Control

These processes should be amongst the first to define and implement and should be approved before implementation - starting with the document and record control

Performing training related to processes of Document and Record control

All employees should have training to learn how to properly use the QM system. The employees shall be aware of the company's QMS strategy that may include:

  • QMS software used
  • Risk management
  • Other relevant QMS related activities
  • Document management
  • Issue management
  • Communication etiquette

Establishing the remaining QMS processes

All the applicable processes have to be properly documented in the company.These process definitions and rules should be available for relevant employees. The process descriptions or definitions have to contain the specifics and the real how to facts for each defined process. The employees should perform their work according to the rules laid down in these process definitions.

Establishing the remaining QMS processes

Work Instructions for quality management activities

Work instructions should be prepared where they are necessary for an effective accomplishment of a concrete process or activity. Examples of Work Instructions may include directions for using a certain computer software or performing a task on an assembly line. Other examples include instructions for issuing a refund to a customer, processing a sale or collecting payment on an account etc.

Job descriptions for each position

The job description concerns only for a position not for an employee, therefore employees for a certain position can be changed but the description and requirements for that position remains the same. A common job description document should include the following data:

  • Position title
  • Position requirements
  • Necessary experience
  • Education and skills to perform tasks related to the particular position,
  • Relationships with other positions
  • Reporting requirements, etc.

Appoint the Management Representative

The Management Representative is a person who oversees the whole QMS system and serves as an interface for external parties, like: certification bodies, external auditors, customers, governmental institutions, etc.

Anybody can be assigned for the Management Representative position, but usually this is the QMS manager's duty. The Appointment letter has to be approved by the CEO.

In case the Management Representative has a deputy, the CEO has to approve the deputy as well.

Auditors, Certification Bodies, Governmental Institutions, Customers

Employee list with positions and other details

This list should be available only for senior management, it includes details from employees, like:

  • Names
  • Positions
  • Department
  • Projects involved
  • Contact information


if the list is updated regularly, it can simplify manager tasks, like:

  • Monitoring of the current state/position of employees
  • With all the contact information it makes easier to reach people
  • Group people for a project, etc.
  • This list can be part of a QMS software as separate function.

Employee CVs

All the employees CVs should be stored in the Company's system. The CVs of the newly employed personnel can be used as indicators to show what kind of additional trainings will be necessary based on the gap determined by the comparison of the CVs and job descriptions / requirements.

Get Started for Free
Instant Sign Up. No Credit Card Required.

Document training on the procedures comprising the quality system

A signed form indicating that employees “read and understand” the procedures is not enough. Training records should include evidence of effectiveness of training, and you should be able to demonstrate competency of the people performing those procedures.

Purchasing

The Management has to decide whether there are certain processes that should be outsourced, such as: manufacturing, installation, servicing, packaging, etc. The outsourced processes should be controlled by the Company. The results (products, parts or services) coming from outsourcing should be verified. The requirements should be established before selecting an outsource company. If there are no such outsourcing activities, you can jump to the next step, and let your company implement all of the core processes that have been determined.

Implementation of the core processes

When all the managers and employees have been prepared to use the QMS system the implementation can be started. The implementation can be paper based or using electronic document formats in a QMS software environment. The core processes might include design and development processes, customer related processes and production related processes.

Full quality system internal audit

Timing of the internal audit should be late enough in the quality plan. If the internal auditor(s) have been heavily involved in the implementation of the quality system, the Company may decide to hire an external consultant to perform the first internal audit. All audit findings should be recorded in the Internal audit report. The report should be approved by the Audit Manager or by the Management Representative.

CAPA

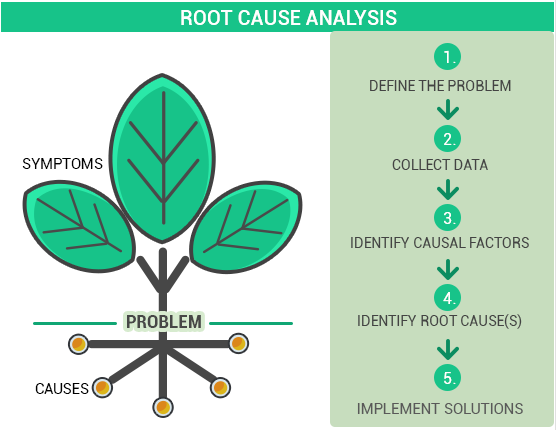

Root Cause Analysis: Define the problem, Collect Data, Identify causal factors, Identify root causes, Implement solutions

Corrective and Preventive actions could be induced by different reasons. It might be initiated as a result of an internal audit, risk assessment, management review, and some kind of nonconformance discovered, or by receiving complaint from customers, etc.

The Corrective actions should be investigated and the root cause should be determined.

All the CAPA findings and proposals for taking certain corrective actions should be reviewed and approved by the Management.

The implementation of each corrective action should be verified to prove their effectiveness.

Preventive actions can be implemented in almost any case after the Corrective action. In order to determine the possible preventive action, a so called Root Cause analysis should be performed.

Performing Management Review

Management review should be performed on a regular basis, but such a meeting has to be organized after each internal audit, design change or when some nonconformance appears, as well as when a product has been returned or complaint has been received. A management review doesn't have to be a huge meeting with all the managers, external experts, etc. involved every, in most of the cases, it is in the director's office, and it's including only the relevant persons. The main principle of these meetings are the properly documented results that are mediated to the appropriate positions by using the appropriate means.

Management of the suppliers

This may involve identifying the Company’s suppliers, ranking them according to type and risk, qualifying or disqualifying them and executing supplier quality agreements.

Updating the Quality Plan as the project proceeds

The constant monitoring and update of the Quality Plan will be required throughout the project implementation or product manufacture. For example: rearranging resources, prolong due dates, adding new activities that had been not foreseen previously etc.

Involve a Consultant for the next internal audit

It is recommended to involve a consultant company or person who will do your internal audit, before submitting request for the external auditors or certification bodies.

CAPA

This CAPA is intended to correct all the deficiencies discovered by the Consultant organization during the internal audit.

Performing Management review

The Management should review the CAPA findings and make decisions related to appropriate Corrective actions.

Getting certified

Select an appropriate Certification body and submit your request for ISO 13485:2016 certification.

Getting certified
